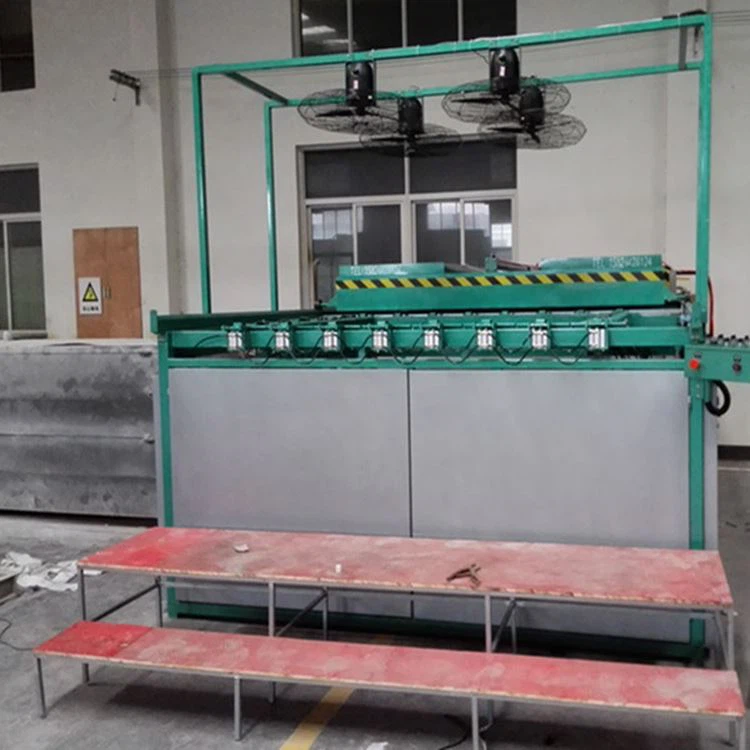

Automatic Vacuum forming Machine
Tsis siv neeg lub tshuab nqus tsev sib sau tshuab yog ib hom tshuab nqus tsev sib sau tshuab.Nqus txoj kev yog ib txoj hauv kev ua cov ntaub ntawv yas. Ib qho txiaj ntsig loj tshaj plaws ntawm lub tshuab nqus tsev yog qhov ua haujlwm siab thiab tus nqi qis piv rau kev txhaj tshuaj molding. Qhov ntawd tuaj yeem ua tau raws li qhov yuav tsum tau ua ntawm huab hwm coj ntau lawm ntawm lub dab da dej.
- Khoom Taw qhia
Tsis siv neeg lub tshuab nqus tsev sib sau tshuab yog ib hom tshuab nqus tsev sib sau tshuab.Nqus txoj kev yog ib txoj hauv kev ua cov ntaub ntawv yas. Ib qho txiaj ntsig loj tshaj plaws ntawm lub tshuab nqus tsev yog qhov ua haujlwm siab thiab tus nqi qis piv rau kev txhaj tshuaj molding. Qhov ntawd tuaj yeem ua tau raws li qhov yuav tsum tau ua ntawm huab hwm coj ntau lawm ntawm lub dab da dej.
|
Lub npe |
Tsis siv neeg lub tshuab nqus tsev sib sau tshuab |
|
Qhov xwm txheej |
Tshiab |
|
Hom yas |
ABS, acrylic |
|
Tsim cheeb tsam |
2000 * 1600 hli |
|
Daim ntawv thickness |
1 8-5 hli |
|
Core Components |
Lub cev muaj zog, iav, twj tso kua mis |
|
Lub zog cua sov |
28 kwv |
|
Tswj |
phau ntawv tswj kev ua haujlwm |
|
Qhov chaw cua sov |
16 thaj chaw (tuaj yeem tswj tau nyias kom txuag tau lub zog hluav taws xob) |
|
Fais fab mov |
220v lossis 380v |
|
Kev ruaj ntseg zoo |
1 xyoo |
|
Kev siv |
Bathtub, da dej tais, phab ntsa vaj huam sib luag |
LUB SIJ HAWM AUTOMATIC VACUUM FORMING MACHINE
1.Electric lifting kho nrug 550mm, pneumatic nqa nrug 350mm
2.Electric pwm hloov thiab pneumatic pwm lifter
3.Manual nqus aspiration thiab tso tshuab
4. Txias kiv cua
DAIM NTAWV THOV KEV PAB CUAM yog raws li nram no
1. Pmma/abs nplooj ntawv thickness: feem ntau siv los ntawm 2mm mus rau 4.5mm xim: feem ntau yog siv ntau yam dawb
2. Resin dc191, ua kom muaj zog nrog cov fiberglass
3. Fiberglass tws strand lev ua rau lub zog ntxiv nrog cov resin ua ke
Specification: 300g / m2, 400g / m2
4. Caco3 hmoov ua cov khoom ntim rau cov cob
5. Catalyst rau cov resin cov tshuaj xiav (sib xyaw nrog resin thiab caco3 hmoov) thiab cov tshuaj dawb (ntxiv rau thaum txau)
FAQ:
Q: Koj txoj kev xa khoom yog dab tsi?
A: Cov qauv feem ntau xa los ntawm kev nthuav qhia, tag nrho kev txiav txim tuaj yeem xa los ntawm tsheb ciav hlau lossis hiav txwv.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: T / T.30 feem pua hauv siab, 70 feem pua ua ntej xa zaub mov., L / C ntawm
Cim npe nrov: tsis siv neeg lub tshuab nqus tsev sib sau tshuab
